ELECTRONIC DC BUZZERS

Intervox solid-state electronic buzzers are designed for applications where low frequency sound is required. They are simple, rugged, and low cost. Considering these advantages, they still produce a rich, broad sound consistent with a wide variety of requirements. There are no mechanical points to arc or require maintenance, and RF noise is non-existent. Ideally suited for auto back-up systems, golf carts, and scooters.

Use the filters below to narrow your search results...

Product Compare (0)

Product	Part No.	FRAME DIAMETER	FRAME DEPTH	RATED VOLTAGE	OPERATING VOLTAGE	MAX CURRENT	SOUND LEVEL OUTPUT	TERMINAL TYPE	RESONANT FREQUENCY	OPERATING TEMPERATURE	MOUNTING DIMENSIONS	ROHS COMPLIANT
ELECTRONIC BUZZER	BR2618L-06	25.8 mm	17.6 mm	6 vdc	4 ~ 8 vdc	33 mA	95dB @ 10 cm	Wire leads	400 ± 100 Hz	-20 TO +60°C	32.0 mm	YES
ELECTRONIC BUZZER	BR2618L-12	25.8 mm	17.6 mm	12 vdc	7 ~ 16 vdc	23 mA	95dB @ 10 cm	Wire leads	400 ± 100 Hz	-20 TO +60°C	32.0 mm	YES
ELECTRONIC BUZZER	BR2618L-24	25.8 mm	17.6 mm	24 vdc	20 ~ 28 vdc	21 mA	95dB @ 10 cm	Wire leads	400 ± 100 Hz	-20 TO +60°C	32.0 mm	YES

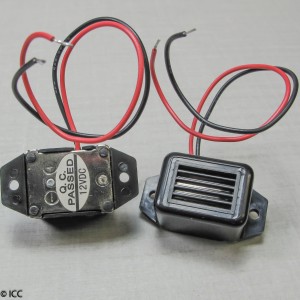

ELECTRONIC BUZZER	BS2316L-06-B	23.0 mm	15.5 mm	6 vdc	4 ~ 8 vdc	25 mA	75dB @ 20 cm	Wire leads	400 ± 100 Hz	-10 TO +60°C	27.5 mm	YES
ELECTRONIC BUZZER	BS2316L-12-B	23.0 mm	15.5 mm	12 vdc	9 ~ 15 vdc	25 mA	75dB @ 20 cm	Wire leads	400 ± 100 Hz	-10 TO +60°C	27.5 mm	YES
ELECTRONIC BUZZER	BS2316L-24-B	23.0 mm	15.5 mm	24 vdc	15 ~ 27 vdc	30 mA	75dB @ 20 cm	Wire leads	400 ± 100 Hz	-10 TO +60°C	27.5 mm	YES
ELECTRONIC BUZZER	BS2316P-06-C-B	22.5 x 16.0 mm	14.6 mm	6 vdc	3 ~ 8 vdc	23 mA	70dB @ 30 cm	4 Pins	400 ± 100 Hz	-20 TO +70°C	15.24 x 7.6 mm	YES
ELECTRONIC BUZZER	BS2316P-12-C-B	22.5 x 16.0 mm	14.6 mm	12 vdc	8 ~ 16 vdc	20 mA	70dB @ 30 cm	4 Pins	400 ± 100 Hz	-20 TO +70°C	15.24 x 7.6 mm	YES
ELECTRONIC BUZZER	BS2316P-24-C-B	22.5 x 16.0 mm	14.6 mm	24 vdc	18 ~ 30 vdc	30 mA	70dB @ 30 cm	4 Pins	400 ± 100 Hz	-20 TO +70°C	15.24 x 7.6 mm	YES
ELECTRONIC BUZZER	BS2620FV-12-B	26.0 x 26.0 mm	19.5 mm	12 vdc	8 ~ 16 vdc	55 mA	95dB @ 10 cm	Fast-On	400 ± 100 Hz	-40 TO +70°C	10.0 mm	YES
ELECTRONIC BUZZER	BS2620PH-03-C	26.0 x 26.0 mm	19.7 mm	3.0 vdc	2 ~ 4 vdc	50 mA	75dB @ 100 cm	4 Pins	400 ± 100 Hz	-20 TO +60°C	19.0 x 9.5 mm	YES
ELECTRONIC BUZZER	BS2620PH-06-C	26.0 x 26.0 mm	19.7 mm	6 vdc	4 ~ 8 vdc	50 mA	75dB @ 100 cm	4 Pins	400 ± 100 Hz	-20 TO +60°C	19.0 x 9.5 mm	YES
ELECTRONIC BUZZER	BS2620PH-12-C	26.0 x 26.0 mm	19.7 mm	12 vdc	8 ~ 16 vdc	50 mA	75dB @ 100 cm	4 Pins	400 ± 100 Hz	-20 TO +60°C	19.0 x 9.5 mm	YES
ELECTRONIC BUZZER	BS2620PH-24-C	26.0 x 26.0 mm	19.7 mm	24 vdc	20 ~ 28 vdc	50 mA	75dB @ 100 cm	4 Pins	400 ± 100 Hz	-20 TO +60°C	19.0 x 9.5 mm	YES

Part No.	Product	Rated Voltage	Operating Voltage	Max Current	Sound Output Level	Terminal Type	Resonant Freq.	Operating Temp	Frame Dia.	Frame Depth.	Mounting Dim.
BR2618L-06	ELECTRONIC BUZZER	6 vdc	4 ~ 8 vdc	33 mA	95dB @ 10 cm	Wire leads	400 ± 100 Hz	-20 TO +60°C	25.8 mm	17.6 mm	32.0 mm
BR2618L-12	ELECTRONIC BUZZER	12 vdc	7 ~ 16 vdc	23 mA	95dB @ 10 cm	Wire leads	400 ± 100 Hz	-20 TO +60°C	25.8 mm	17.6 mm	32.0 mm
BR2618L-24	ELECTRONIC BUZZER	24 vdc	20 ~ 28 vdc	21 mA	95dB @ 10 cm	Wire leads	400 ± 100 Hz	-20 TO +60°C	25.8 mm	17.6 mm	32.0 mm
BS2316L-06-B	ELECTRONIC BUZZER	6 vdc	4 ~ 8 vdc	25 mA	75dB @ 20 cm	Wire leads	400 ± 100 Hz	-10 TO +60°C	23.0 mm	15.5 mm	27.5 mm
BS2316L-12-B	ELECTRONIC BUZZER	12 vdc	9 ~ 15 vdc	25 mA	75dB @ 20 cm	Wire leads	400 ± 100 Hz	-10 TO +60°C	23.0 mm	15.5 mm	27.5 mm
BS2316L-24-B	ELECTRONIC BUZZER	24 vdc	15 ~ 27 vdc	30 mA	75dB @ 20 cm	Wire leads	400 ± 100 Hz	-10 TO +60°C	23.0 mm	15.5 mm	27.5 mm
BS2316P-06-C-B	ELECTRONIC BUZZER	6 vdc	3 ~ 8 vdc	23 mA	70dB @ 30 cm	4 Pins	400 ± 100 Hz	-20 TO +70°C	22.5 x 16.0 mm	14.6 mm	15.24 x 7.6 mm
BS2316P-12-C-B	ELECTRONIC BUZZER	12 vdc	8 ~ 16 vdc	20 mA	70dB @ 30 cm	4 Pins	400 ± 100 Hz	-20 TO +70°C	22.5 x 16.0 mm	14.6 mm	15.24 x 7.6 mm
BS2316P-24-C-B	ELECTRONIC BUZZER	24 vdc	18 ~ 30 vdc	30 mA	70dB @ 30 cm	4 Pins	400 ± 100 Hz	-20 TO +70°C	22.5 x 16.0 mm	14.6 mm	15.24 x 7.6 mm
BS2620FV-12-B	ELECTRONIC BUZZER	12 vdc	8 ~ 16 vdc	55 mA	95dB @ 10 cm	Fast-On	400 ± 100 Hz	-40 TO +70°C	26.0 x 26.0 mm	19.5 mm	10.0 mm
BS2620PH-03-C	ELECTRONIC BUZZER	3.0 vdc	2 ~ 4 vdc	50 mA	75dB @ 100 cm	4 Pins	400 ± 100 Hz	-20 TO +60°C	26.0 x 26.0 mm	19.7 mm	19.0 x 9.5 mm
BS2620PH-06-C	ELECTRONIC BUZZER	6 vdc	4 ~ 8 vdc	50 mA	75dB @ 100 cm	4 Pins	400 ± 100 Hz	-20 TO +60°C	26.0 x 26.0 mm	19.7 mm	19.0 x 9.5 mm
BS2620PH-12-C	ELECTRONIC BUZZER	12 vdc	8 ~ 16 vdc	50 mA	75dB @ 100 cm	4 Pins	400 ± 100 Hz	-20 TO +60°C	26.0 x 26.0 mm	19.7 mm	19.0 x 9.5 mm
BS2620PH-24-C	ELECTRONIC BUZZER	24 vdc	20 ~ 28 vdc	50 mA	75dB @ 100 cm	4 Pins	400 ± 100 Hz	-20 TO +60°C	26.0 x 26.0 mm	19.7 mm	19.0 x 9.5 mm
